Combi Crane V1
zoom_out_map
chevron_left chevron_right

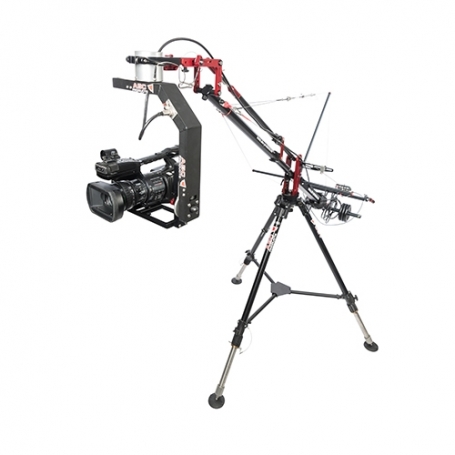

Combi Crane

Bras caméra extrêmement léger compatible avec des têtes motorisées jusqu'à 20 kg

Dernière génération de tubes carbone

Aucun produit ajouté encore



Télécharger le PDF

Crane head

  • Extendable crane head can be adjusted to the camera size
  • Novel tool-free camera mounting with 1/4 “screw
  • Integrated 80mm remote headmount for optimal remote head positioning
    allows 360 ° turns
  • Adapter for mounting of gimbal systems (DJI Ronin) as accessories Integrated leveling system
  • Connection for monitor holder integrated (left and right side) in the sick head and middle part
  • Additional thread for 1/4 “and 3/8” for crane accessories, e.g.Battery holder, monitor etc.

Crane support

  • Special pivot bearing for soft movement sequences
  • Integrated horizontal and vertical brake
  • Adaption for 75mm and 100mm stand shells

Outrigger

  • Version 1-4 with cable sets for increased stability

End segment

  • Counterweight with 30mm counterweight tube and two 15mm mounting tubes for the accessories.
8320-03
