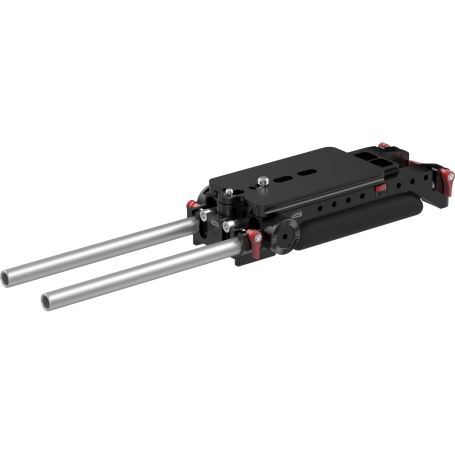

Vocas USBP-15 MKII avec épaulière souple

15 mm Universal shoulder base plate to convert any camera into a shoulder mounted camera with soft shoulder pad (0350-2320). The USBP-15 MKII is a height adjustable shoulder baseplate with a unique quick release balancing system to find optimal balance and stability with all kind of different camera/lens combinations.

The USBP-15 MK II is part of the Vocas Sliding system, a revolutionary new way to mount cameras to different setups, while balancing the camera optimally. The heart of this system is the universal camera adapter plate (0350-2250). This plate can be attached to almost any camera, and provides the camera with a mini dovetail connection. This allows the camera to slide on and off the various Vocas products that are based on this mini dovetail system, like the USBP-15 MKII (0350-2200), USBP-19 MKII (0350-2205), BP-19 MKII (0480-0019) and Quick release dovetail plate (0350-2220).

All of these products are equiped with a quick release lever, making it possible to find optimal balance for your setup within seconds, without using any tools. A real benefit when changing lenses a lot.

Furthermore, it’s easy to switch between 15 mm setups, 19 mm setups, drones, gimbals or any other conceivable setup that incorporates the quick release dovetail plate (0350-2220).

The height adjustable front rails of the USBP-15 MKII provide compatibility with almost any camera! Both sides of the plate are equiped with standard rosettes to mount handgrips or other standard rosette accessories. The bottom of the plate is equiped with magnets, to mount a variety of shoulder pads to multiple positions underneath the base plate. The USBP-15 MKII attaches directly to VCT-14 style quick release plates. A toolless VCT-14 rear adjustment prevents the quick release plate from having play. Fixed rear rails offer the possibility to mount any 15 mm rail accessory to the back of the camera, for instance a battery, recorder or monitor.

Optional items for the USBP-15 MKII:

- The 15 mm clamping block high for USBP-15 MKII (0350-2210) is required to use the USBP-15 MKII with any RED camera. The front rails clamping mechanism will be replaced for a higher front rails clamping mechanism to get the 15 mm rails higher.

- The flat base plate for USBP-15 MKII (0350-2031) makes the USBP-15 MKII compatible with tripods with ENG wedge plates. Multiple 1/4’’ and 3/8’’ threaded holes are integrated on the bottom of this plate, giving options to mount any other tripod plate to this system.

Included in the box:

- USBP-15 MKII

- Camera adapter plate (0350-2250)

- Soft shoulder pad (0350-2320)

- 2x Aluminum 15 mm rail. Length; 210 mm. (1 pc.) (0350-9210)

DESCRIPTION :

• Bars position : Front, Rear
• Bars system : 15mm
• Height adjustable : Yes
• VCT-14 quick release compatibility : Yes
• Toolless VCT-14 rear adjustment : Yes
• Material : Aluminium
• Weight (gr.) : 914
