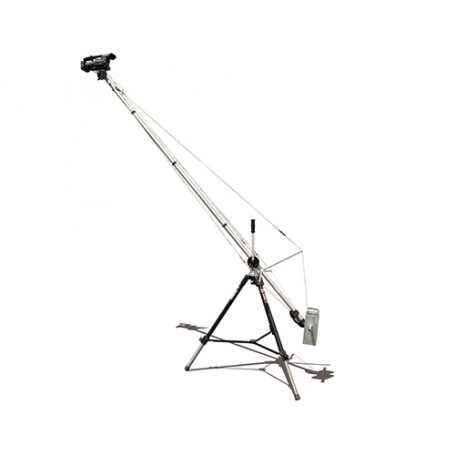

Mini-crane 350
zoom_out_map
chevron_left chevron_right

Mini-crane 350

  • Grue légère facile à monter
  • peut être assemblée en 7 minutes environ
  • 3 tailles différentes
  • frein horizontal
  • utilisable en intérieur et extérieur

Aucun produit ajouté encore



Télécharger le PDF

Extremely short set-up times (approx. 7 minutes complete assembly!)
Robust construction for all weather conditions
Small pack size, ideal for travel by plane
Many special functions integrated
Proven, long-lasting mechanics
Special bearing design for sliding camera movements

  • 1 Crane segment with crane support (base element for tripod assembly)
  • 2 Extension segments
  • 1 Extension segment incl. additional outrigger
  • 1 Segment with crane-head
  • 1 Camera screw ¼ inch
  • 1 Camera screw 3/8 inch
  • 1 Rig Set for assembly length “small”
  • 1 Rig Set for assembly length “medium”
  • 1 Rig Set for assembly length “large”
  • 1 Weight support bar (Ø 24mm / 0.94 inch, Length 400mm / 15.74 inch)
  • 2 Safety pins for counterweights
  • 1 Transport soft-case
  • 1 Manual
Each Rig Set includes 4 individual rigs: 2 rigs for lateral bracing, 1 tower rig holds the crane weight, and 1 control rig
Crane head angle:

The adjustment of the crane head angle is made by changing the parallelogram.
If the control cable runs parallel to the crane tube, the camera always holds the horizontal position.
If the control cable runs asymmetrically to the crane tube, the crane head angle changes depending of the pivot height.

Camera holds the horizon during panning:
abc-products-minicrane-parallelogramm-1
Camera with steep swivel angles:
abc-products-minicrane-parallelogramm-2
abc-products-minicrane-kranlaengen
abc-products-minicrane-technische-daten
